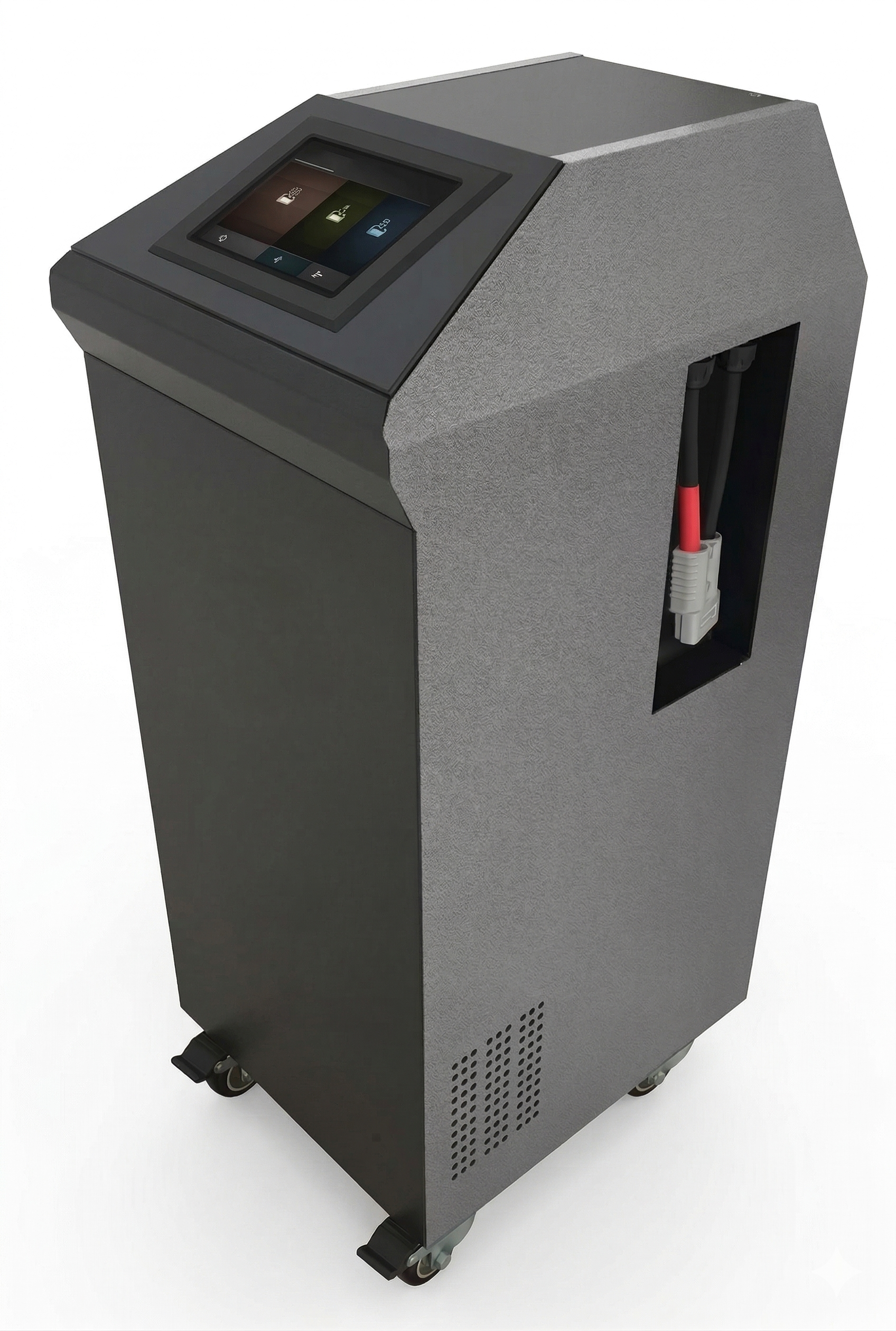

RPT-D10K Digital Battery Discharger & Analyzer
High-performance digital discharger and analyzer for exact capacity testing of industrial DC batteries.
RPT-D10K Digital Battery Discharger & Analyzer
The RPT-D10K is a high-performance digital battery discharger and analyzer designed to test the efficiency and exact capacity of industrial batteries. It uses high-frequency IGBT and constant-current control to deliver precise diagnostic data.
This unit is used to verify battery regeneration results and to perform exact capacity tests across industrial and backup power applications.
Contact us for pricing & availabilityKey features
Variable voltage support
Compatible with DC batteries from 12 V to 96 V.
High discharge capacity
Maximum discharge current 200 A, up to 10 kW.
Smart control
Microprocessor-based discharge settings and automated testing.
Real-time monitoring
Display of cut-off voltage, current, and run time.
Advanced protection
Intelligent electronic protection and input over-voltage protection.
Performance analysis
Optional PC monitoring program for battery performance graphs.
Technical specifications
| Voltage range | DC 12 V ~ 96 V (universal application) |
|---|---|
| Max. discharge current | 200 A |
| Max. power capacity | 10 kW |
| Input voltage / frequency | AC 210 V ~ 240 V / 50–60 Hz |
| Dimensions (H × W × D) | 740 × 402 × 512 mm |
| Weight | 47 kg |
| Cooling / control | High-frequency IGBT with switching control |
Applications
Industrial equipment
- Electric forklifts
- Golf carts
- Scrubbers
Renewable energy
- Solar power storage
- Backup systems
Telecommunications
- UPS
- Telecom tower battery banks
Transportation & marine
- Electric lifts
- Wheelchairs
- Trains
- Marine batteries
Included accessories
- Battery connector cable kit: one 1.5 m cable set (70 mm²) included with the unit.
